Drsnoměr Diavite DH-9

Drsnoměr Diavite DH-9
1. vyberte rozměr
2. vložte zboží do košíku
Ks

Výrobce:DIAVITE
Záruka:2 roky
Dostupnost:měsíc
Kód:5
Kategorie:Drsnoměry, kontury >

Popis:

výborný drsnoměr s největším nmožstvím speciálních snímačů, na přání optika a kontury

Charakteristika:

  • High precision surface roughness meter for universal use in workshop and inspection room
  • Automatic calibration
  • Memory for 50 measurements
  • 5 measuring length, all selectable between 0.5 and 15.0 mm
  • Measuring speed selectable
  • Calibration for max. 8 tracers
  • 8 measuring programs

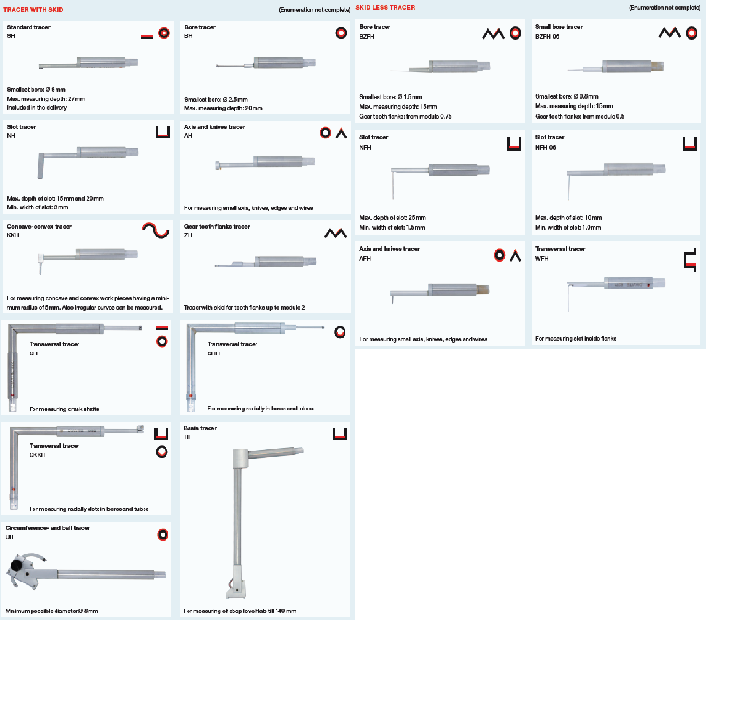

  • Choice of many types of tracers to solve nearly all measuring tasks, also customer specific ones
  • User friendly comprehensive multilingual menu guidance
  • Tolerance indication for measuring values exceeding permissible allowance set
  • Key lock for lt, lc and R to prevent any settings being changed by mistake during measuring procedure
  • USB output for data transfer (option: Bluetooth)
  • Choice of capable software programmes DIASOFT (optional)
  • Numerous accessories for many applications, needed for working with skid less tracers

Na přání:

Measurement of contours

The DH-8 now offers, as an option, to precisely measure contours. For this purpose, a special contour measuring tracer is needed, in combination with a special software

  • Measuring range X: from 0.5 to 15.0 mm
  • Measuring range Z: max. 4 mm
  • Tracing angle: falling flanks up to 88° rising flanks up to 77°

Optical measurment

Measurement of a wide range of surfaces: vertical steps, high aspect ratios, bumps and holes, fragile, soft, flexible, sharp, hard or abrasive surfaces, transparent, reflective, opaque, multi-material surfaces

  • Measuring head: CLA-400
  • Measuring range Z: 400 µm
  • Working distance: 5 mm
  • Repeatability: 2 nm
  • Vertical resolution: 0.025 nm
  • Spot size: 7 μm
  • Maximum slope: ±30°

Standardní dodávka:

- Instrument DH-8
- Motor unit VH nebo VHF
- Standard tracer
- Specimen metal Ra =3.00
- Charger
- Connecting cable
- USB-connecting cable
- Screw driver
- Instruction manual + short manual
- Certificate of quality
- Carrying case
